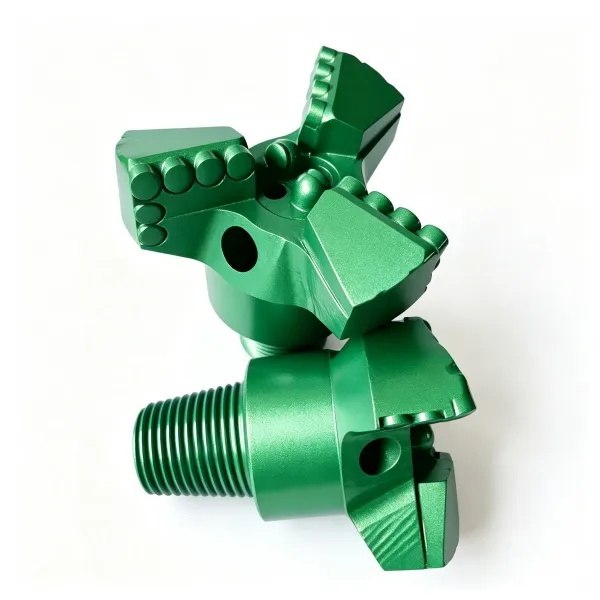

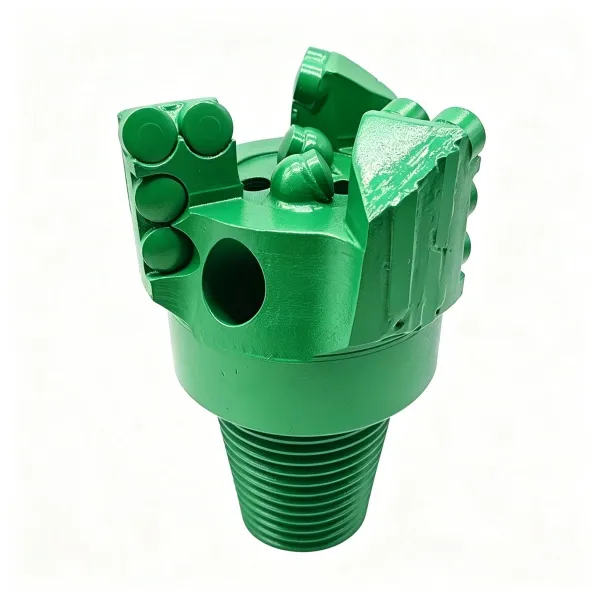

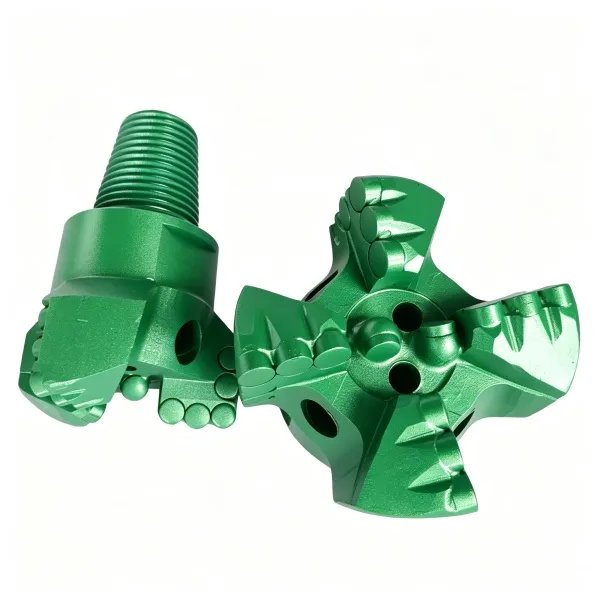

A Concave PDC (Polycrystalline Diamond Compact) Drill Bit represents a significant advancement in rock-cutting technology. Distinguished by its unique concave or "inverted" profile at the bit's center, this design deviates from traditional flat or convex profiles.
The concave geometry creates a stabilizing effect and concentrates weight on the diamond cutters, leading to faster penetration rates and improved directional control. As a vertically integrated manufacturer, we control the entire production chain—from forging the high-quality bit body to synthesizing the premium PDC cutters. By selling directly from our factory, we eliminate middlemen costs and guarantee the highest quality materials at competitive prices.

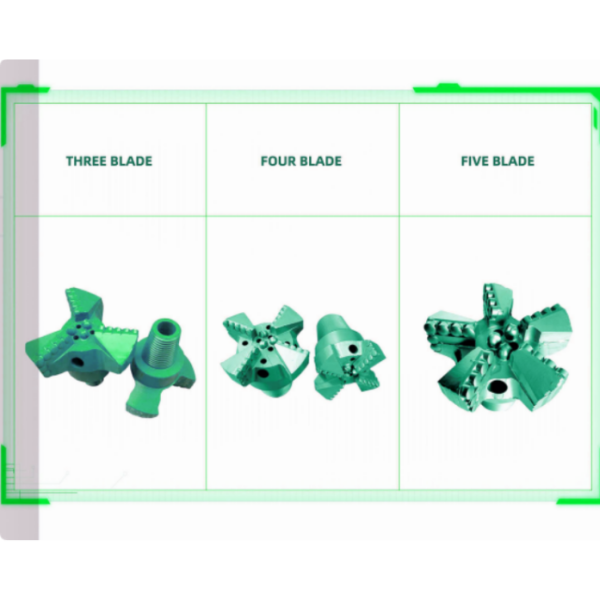

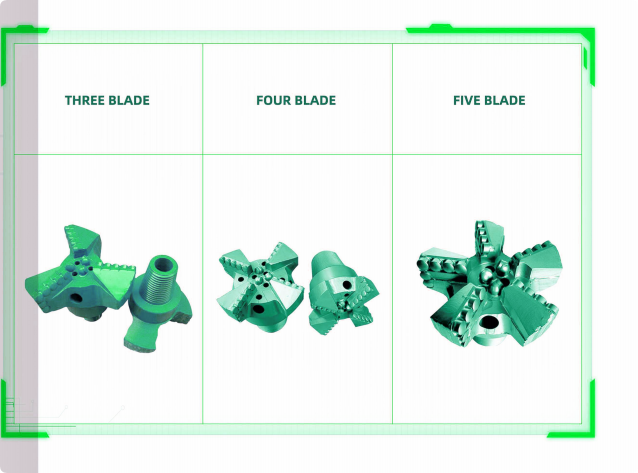

Blade | Inch | Diameter | Thread |
4/5wings | 37/8" | 98.4mm | 23/8"API REG PIN |
4/5wings | 43/4" | 149.2mm | 27/8"API REG PIN |
4/5wings | 51/2" | 139.7mm | 31/2"API REG PIN |
4/5wings | 53/4" | 187.3mm | 31/2"API REG PIN |
4/5wings | 61/4" | 158.8mm | 31/2"API REG PIN |
4/5wings | 71/2' | 190.5mm | 41/2"API REG PIN |
4/5wings | 77/8" | 200mm | 41/2"API REG PIN |
The concave PDC drill bit features a unique inward-curving profile that enhances stability, improves directional control, and ensures even load distribution for faster penetration and extended bit life.
Enhanced Stability & Directional Control: The inward-curving design creates a natural stabilizing effect, reducing bit vibration and improving tool face control for directional drilling.
Optimized Cutter Load Distribution: The concave profile ensures that cutting forces are distributed evenly across the PDC cutters, extending bit life and preventing premature chipping.
Improved Cuttings Removal: The unique geometry facilitates better hydraulic flow, efficiently clearing debris from the bit face and reducing the risk of bit balling in soft formations.
Custom Profile Design: We can adjust the concave depth, blade count, and cutter angles based on your specific rock hardness and abrasiveness.
