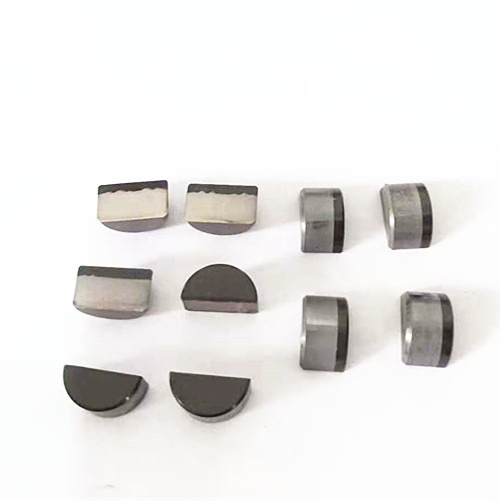

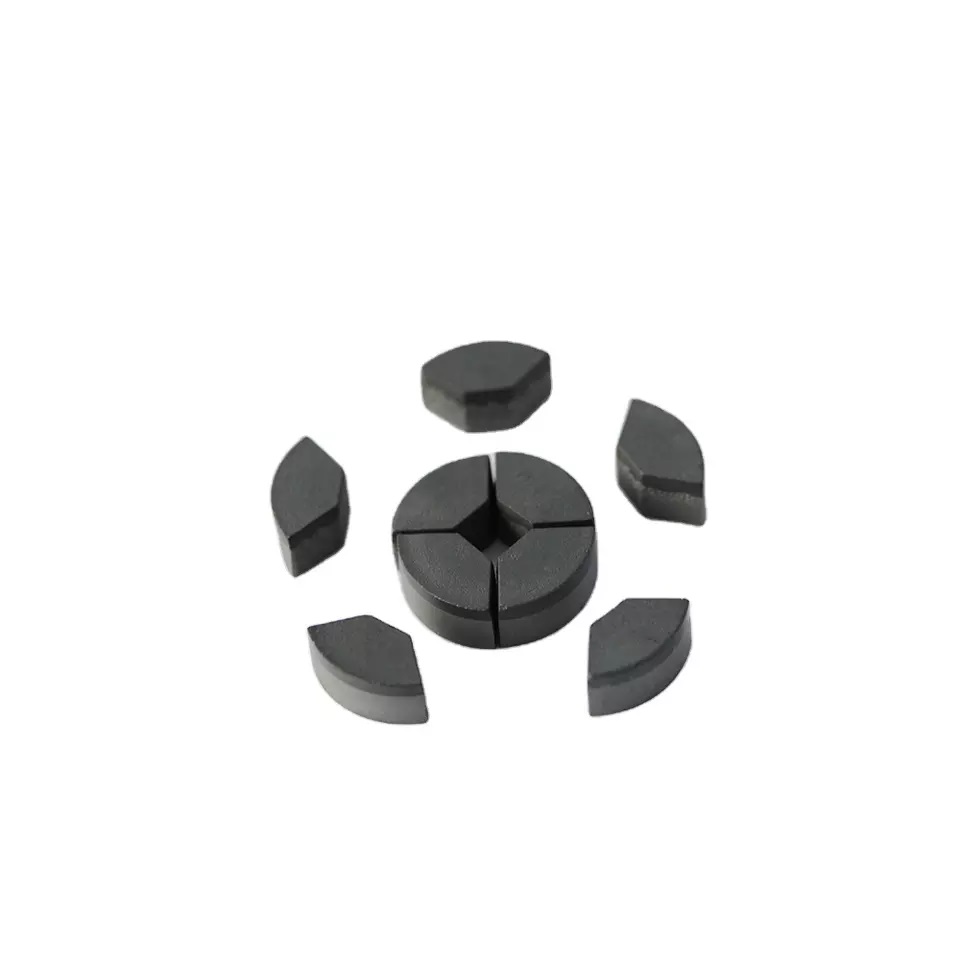

Fan shaped PDC cutter is a good choice for high-speed drilling, continuous cutting and hole boring. This kind of PDC cutter has super wear resistance, good heat resistance and impact resistance.
| Available Size: | |||
| Description | Diameter(mm) | Height(mm) | PCD Layer Thickness |
| 0804 | 8.2 | 4.5 | 1.8±0.2 |
| 0808 | 8.2 | 8 | 2.0±0.2 |
| 1008 | 10 | 8 | 2.0±0.2 |
| 1304 | 13.3 | 4.5 | 2.0±0.2 |
| 1308 | 13.3 | 8 | 2.0±0.2 |
| 1313 | 13.3 | 13.2 | 2.0±0.2 |
| 1613 | 16 | 13.2 | 2.0±0.2 |
| 1616 | 16 | 16 | 2.0±0.2 |
| 1908 | 19.05 | 8 | 2.0±0.2 |
| 1913 | 19.05 | 13.2 | 2.0±0.2 |
| 1916 | 19.05 | 16 | 2.0±0.2 |
| 1919 | 19.05 | 19 | 2.0±0.2 |
In the ever-evolving landscape of drilling technology, Top Tools emerges as a leading force among PDC cutter manufacturers, setting new benchmarks with precision engineering and innovative design. Our PDC cutters stand as a testament to cutting-edge performance, offering a host of benefits that redefine drilling efficiency.
